รหัสสินค้า : CI-21H

FULL HD PTZ CONFERENCE CAMERA

ยี่ห้อ AREC รุ่น CI-21H

กล้อง PTZ IP Camera ความละเอียด 1080p Zoom 10x มี HDMI out USB3.0 รองรับ ONVIF

• Compact Design with IP Streaming
• Capable of Production Quality Full HD Video Output up to 1080/60p via HDMI, USB3.0 and IP Transmission
• Plug-and-Play Compatibility: USB connectivity to PC and Laptop
• Featuring a 10x Optical Zoom that Delivers Smooth Pan, Tilt, and Zoom-in Performance
• IR Remote Control Included
• Suitable for huddle rooms and small-to-medium conference rooms
•


FEATURES

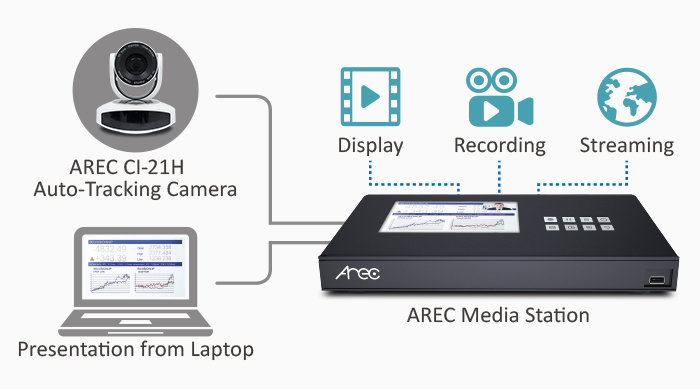

EASY IMPLEMENTATION FOR ANY TYPE OF INDOOR SCENARIO

Combining RJ-45, HDMI and USB 3.0 outputs, CI-21H PTZ Camera can be used with AREC Media Stations for Lecture Capture, any Video Conference System (either HW or SW-based), related SW-based Lecture Capture Platform, and even stream to a Live Streaming Service directly.

FULLY ENJOY THE PROFESSIONAL VIDEO QUALITY

With high performance H.264 compression technology, AREC CI-21H provides Full HD quality at up to 1080/60p. Featuring advanced ISP processing algorithms, CI-21H provides vivid images with fantastic color rendition. Low noise CMOS effectively ensure high SNR of camera video.

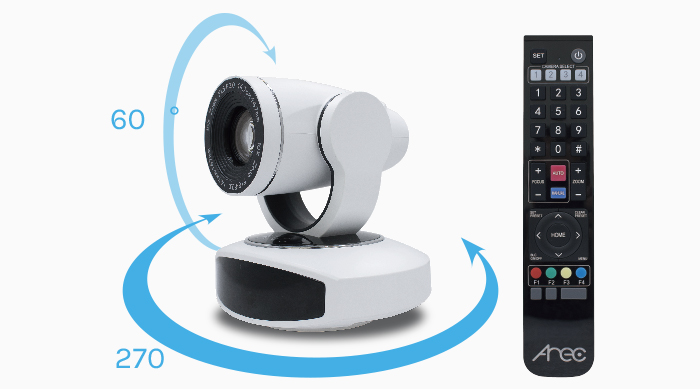

QUIET AND QUICK PAN/TILT MECHANISM

CI-21H supports 270 degree rotation, a 60 degree tilt range, and 10x zoom with auto focus capability. The pan/tilt/zoom control functions can be performed remotely. Adopting step driving motor mechanism, CI-21H camera works extremely quiet and moves smoothly.

SPECIFICATIONS

SPEC/ MODELCI-21H PTZ Conferencing CameraIMAGE SENSOR1/2.8” progressive CMOSMINIMUM ILLUMINATION0.5 lux @ F1.8VIDEO COMPRESSIONH.264MAX. RESOLUTION1920x1080 @ 60fps (IP Streaming)

1920x1080 @ 60fps (HDMI/USB 3.0)VIDEO OUTPUT PORTHDMI, USB 3.0, RJ-45 (IP Streaming)NETWORK INTERFACERJ-45, 100Mbps EthernetFOCAL LENGTH4.7 - 47mm (10x optical zoom)IRISF1.6 (wide) / F3.0 (tele)VIEW ANGLE60.9° (wide) ~ 6.43° (tele)PAN/TILT ROTATION-135°~+135°, -30°~+30°PAN/TILT CONTROLLER SPEED0.1∼60° / second, 0.1∼30° / secondPAN/TILT SPEED (MAX.)Pan: 60°/ second, Tilt: 30°/ secondCONTROL PORTRS-232CONTROL PROTOCOLVISCA/ Pelco-D/ Pelco-PNETWORK PROTOCOLRTSP, RTMP, ONVIFDIMENSION (L X W X H)128.9 x 151.6 x 154.5 mmWEIGHT1kg
