KVM MATRIX SWITCHES 32 - 64 COMPUTERS VIA 4, 8 OR 16 SIMULTANEOUS USER MODULES

ยี่ห้อ G&D รุ่น CATCenter NEO

The analogue KVM matrix system you can operate 32 - 64 computers via 4, 8 or 16 simultaneous user modules. When cascaded, up to 128 consoles can access up to 2048 computers.

CATCENTER NEO OPERATE 32 - 64 COMPUTERS VIA 4, 8 OR 16 SIMULTANEOUS USER MODULES

With the analogue KVM matrix system you can operate 32 - 64 computers via 4, 8 or 16 simultaneous user modules. When cascaded, up to 128 consoles can access up to 2048 computers.

VARIANTS OF THE CATCENTER NEO

We provide the following CATCenter variants. All devices can be cascaded.

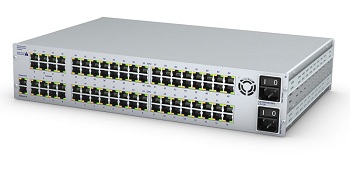

CATCENTER NEO16

Provides ports for 16 user modules and 64 computer modules

Expandable to up to 128 consoles and 1024 computers

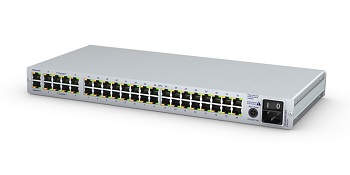

CATCENTER NEO8

Provides ports for 8 user modules and 32 computer modules

Expandable to up to 64 consoles and 512 computers

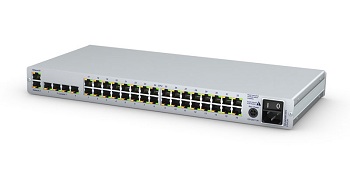

CATCENTER NEO4

Provides ports for 4 user modules and 32 computer modules

PRODUCT DETAILS

Features

MONITORING/SNMP

Function: receive CATCenter NEO status info

Operation via: web interface/SNMP

Efficiency: 1 cluster

The "CCNEO Monitoring" feature allows you to detect the system status of G&D devices. The web interface of the particular device provides these information, which can also be sent (SNMP trap) or queried (SNMP GET).

Both the monitoring function and SNMP trap and agent are included in the scope of supply. The information section shows the configuration settings and the detected status values of the device.

• Among others, the following status values can be monitored:
• Device's main power supply
• Device's redundant power supply
• Device's temperature

Status changes (e.g. power on/off) and exceeding defined threshold values (e.g. temperatures) highlight these values in red in the web interface. Based on defined parameters, the device also notifies the administrator.

The monitoring values ​​can also be obtained from AMX Crestron control.

EASIER ACCESS WITH SNMP TOOL ZABBIX

For customers who are not yet using extensive SNMP tools, G&D offer a simple way to use the functions included in the devices. Templates for the open source tool Zabbix are provided here. The program lets users monitor SNMP-capable devices in a network and, among other things, issues warning notifications about critical device states, which have been received via SNMP trap.

NETWORK/COMMUNICATION/SAFETY

• Access protection and user administration can be switched off
• Auto-recognising and showing of system architecture
• Two network ports
• Configuration over web interface
• Supports external authentication via LDAP, Active Directory, TACACS+, Radius
• Redundant power supply

Details

VIDEO

• Switch and extender combined in one system
• Automatic image tuning for each line between user module and computer module
• Transmission up to 300 m over CAT cable at maximum resolution
• Integration of DVI computers with CATpro2-DVI-Audio-UC
• VGA colour mode 32 bits
• Video resolution over IP max. 1920 × 1200 @ 60 Hz according to VESA CVT-RB, colour mode 8 bit
• Automatic video setting, which can be adjusted to each user
• Transmission length between computer module and user module: 300 m over CAT cable

SIGNALS

• Switches audio signals
• PS/2 and USB keyboard/mouse

EXPANSION

• Expandable to up to 2048 computers and 128 consoles
• Expandable with power switching component
• Increases the system range to up to 10,000 m via fibre optics
• Firmware expansion for multi-monitor consoles (TS function)
• Firmware expansion to push/get own or remote screen contents (Push-Get function)
• Firmware expansion to prepare switching over network (IP-Control-API)

AUDIO

• Unidirectional transmission of audio signals (computer to console)
• Digital resolution 24 bits
• Bandwidth 22 kHz/refresh rate 48 kHz

DEVICE

• Only accesses the computer's standard interfaces
• Requires no software installation
• Available as desktop variant incl. 19" rack mount kit
• Aluminium housing for best noise immunity
• Redundant power supply
• Hot-pluggable system components
• Stay-alive function for servers
• Switchable power bars (Hardboot CCX) can be optionally integrated

VARIANTS

CATCenter-NEO variants

CATCENTER NEO16

• Provides ports for 16 user modules and 64 computer modules
• Expandable to max. 128 consoles and 1024 computers

CATCENTER NEO8

• Provides ports for 8 user modules and 32 computer modules
• Expandable to max. 64 consoles and 512 computers

CATCENTER NEO4

• Provides ports for 4 user modules and 32 computer modules
• Expandable to max. 32 consoles and 2048 computers

DESIGN

• CATCenter NEO matrix switches are shipped as desktop variant.
• The package contents contain a 19" rackmount set.

Application

APPLICATION FIELD OF THE CATCENTER NEO

The CATCenter NEO is designed for the deployment in applications with large traffic and an accordingly large number of computers and simultaneous accesses. The application can even be placed at several locations.

Thanks to their modularity, the matrix switches can be adapted to growing functions as well as a growing amount of computers that need to be connected. The devices are deployed e.g. for administrating large server rooms, control centres or OB vans.

The main differences to other compact KVM matrix switches are:

• Possibility to switch audio signals
• Configuration via web interface
• All variants provide network ports
• Up to 128 consoles

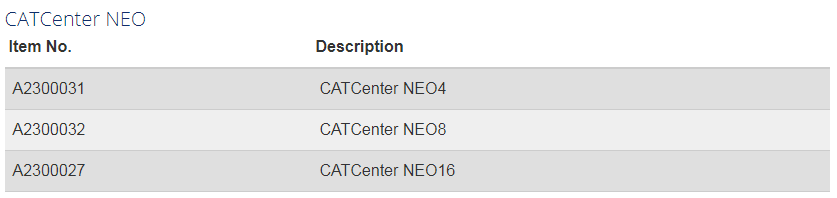

LIST OF ITEM NUMBERS
