KVM SWITCH WITH 4 VIDEO CHANNELS

ยี่ห้อ G&D รุ่น quadMUX

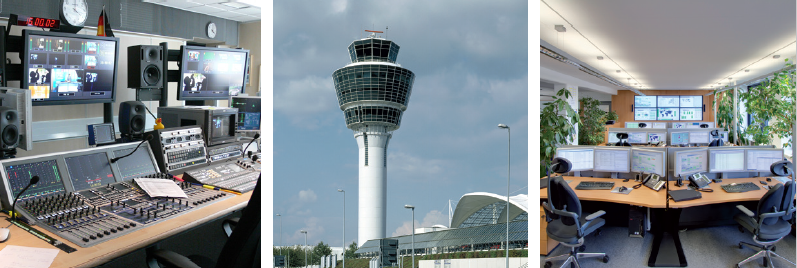

QuadMUX KVM Switches สามารถควบคุม 4 เครื่องคอมพิวเตอร์ได้ด้วย 1 จุดควบคุม หรือ ควบคุม 16 เครื่องคอมพิวเตอร์ ได้ด้วย 4 จุดควบคุม เหมาะสำหรับงานตรวจสอบแบบ Real-time เช่น ระบบควบคุมเครื่องจักร, การควบคุมการจราจรทางอากาศ

SCENARIO SWITCHING

QuadMUX KVM switches provide just as many connections on console and user side as miniMUX4-MC3 + MC4 devices. The most important difference between the units are their switching options.

QuadMUX variants, however, combine the video sources from different computers. These combinations (scenarios) can be retrieved using hotkeys. The correct information mix will be immediately available on three or four monitors. The scenarios are defined in the OSD AdonIS of the QuadMUX.

The computer to which the keyboard is switched by default in that scenario is also defined here. This assignment can be cancelled. You can use hotkeys to switch keyboard or mouse on each of the other computers within the scenario.

VIDEO

• VGA resolution 1920 × 1440 @ 75 Hz or 2k × 2k @ 60Hz
• Video bandwidth VGA up to 400 MHz

DEVICE

• Switches 16 video inputs from four computers to four video outputs
• Stores up to eight video combinations as scenarios that can be immediately displayed over hotkey/OSD
• Accesses only standard keyboard/video/mouse interfaces
• Permanent keyboard/mouse emulation for each channel
• Available as desktop and 19" variant
• Can be cascaded with miniMUX4
• Requires no software installation
• Can be combined with all G&D products
• Hot-pluggable
• Password protection and rights assignment for each user

SYSTEM UPGRADE

• Flash upgrade at device
