รหัสสินค้า : TR-HDR7

UHD 4K2K CAPTUR BOX

ยี่ห้อ NEXIS รุ่น TR-HDR7

4K UHD Recording from DVD, OTT, Receiver, PC, PS and Xbox. Dual mode design, HD recording on external USB storage/TF Card (Standalone) or PC.

UHD 4K2K CAPTUR BOX

• 4K UHD Recording from DVD, OTT, Receiver, PC, PS and Xbox
• Dual mode design, HD recording on external USB storage/TF Card (Standalone) or PC
• OSD control with multi-language
• H.264 HD hardware encoding up to 1080P 30FPS
• HDMI input (x2), HDMI output, AV output
• HDMI pass-through without latency
• Recording data rate up to 16Mbits/sec in MP4 format
• Recording audio via microphone input
• Support remote control (IR)

SPECIFICATION

Bit rate:

• Bit rate Max: 16Mbps, default 10Mbps

Input:

• HDMI & YPbPr
• AV Composite (CVBS) L/R
• MIC (Audio in)

Output:

• HDMI
• USB 2.0 (for external HDD & USB Stick)
• TF Card
• Micro USB for PC connection
• Audio Line Out

VIDEO RESOLUTION

Input4K (3840*2160_60p) , 2K (2560*1440_60p)

1920*1080 (50p), 1920*1080(60p), 1920*1080(24p)

1920*1080 (25p), 1920*1080(30p), 1920*1080(50i)

1920*1080 (60i), 1360*768 (60P)

1280*1024 (60p), 1280*720 (60p), 1280*768 (60p)

1280*800 (60p), 1024*768 (60p)

720*480 (60i), 720*480 (50i), 640*480 (60p)

720*480 (60p), 720*576 (50p)Output1920*1080 (60p), 1280*720 (60p)Recording1920*1080 (30p), 1280*720(60p)

CONNECTORS

• HDMI input/ YPbPr input / HDMI output
• CVBS/ Microphone input / Audio line out
• USB 2.0 for external HDD (IDE and SATA/2.5” & 3.5”/7200, 5400, 4200) / USB Stick
• Micro USB output to PC and TF Card
• Power 5V/2A input

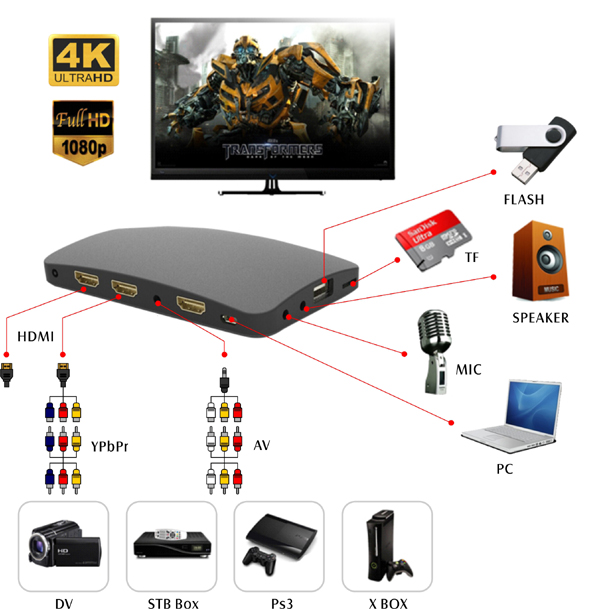

DIAGRAM:
