รหัสสินค้า : VS164

DVI 1X4 SPLITTER

ยี่ห้อ ATEN รุ่น VS164

1x4 DVI splitter (1-in/4-out) ต่อแสดงผลทั้งภาพและเสียงออก 4จอ พร้อมกัน

FEATURES

• Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
• Fully compliant with DVI-Digital and DVI-Analog.
• Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
• Speaker enabled for audio enjoyment. Cascadable to 3 levels - provides up to 64 video signals.
• Installs in minutes.
• Maintains highest single link video resolution (up to 1920 x 1200).
• DDC, DDC2, DDC2B Compatible (Port 1 only).
• OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

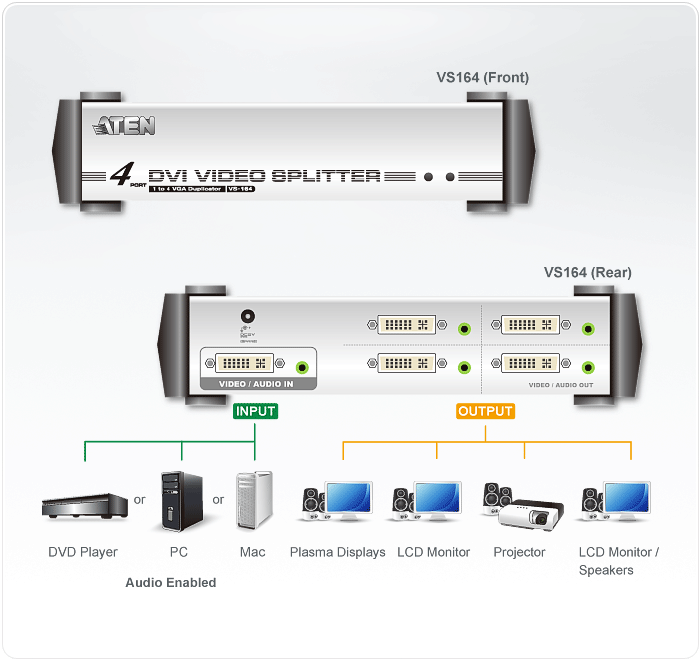

Diagram

Specification

Computer Connections 4

Connectors

Video In 1 x DVI Female (White)

Audio In 1 x Mini Stereo Jack Female (Green)

Video Out 4 x DVI Female (White)

Audio Out 4 x Mini Stereo Jack Female (Green)

Power 1 x DC Jack (Black)

LEDs Online1 (Orange)

Selected 1 (Green)

Resolution 1920 x 1200 @60 Hz

Signal Range Up to 5m (15')

Power Consumption DC5.3V,4.8W (Max.)

Environment Operating Temp.0-50?C

Storage Temp. -20-60?C

Humidity 0-80% RH, Non-condensing

Physical

Properties Housing Metal

Weight 0.72 kg

Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm
