รหัสสินค้า : VS172

2-PORT DVI DUAL LINK SPLITTER WITH AUDIO

ยี่ห้อ ATEN รุ่น VS172

The VS172 2 Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high band width capacity for added transmission power and faster refresh rates, there by providing better video quality of viewing resolutions up to 2560 x 1600.

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.

The VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors , which makes them the ideal solution for situations such as:

a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)

b) Company training facilities

c) Classroom instruction

FEATURES

• Displays DVI audio/video to multiple DVI-compatible monitors or projectors
• Superior video quality – up to 2560 x 1600 @60Hz and 1080p
• Cascad able to 3 levels – provides up to 8 video signals
• Audio enabled
• Features RS-232 serial port for command controls
• RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
• EDID Expert – selects the optimum EDID settings via RS-232

SPECIFICATION

Function VS172

Display Connections 2

Connectors

Video In 1 x DVI-D female (White)

Audio In 1 x Mini Stereo jeck (Green)

RS-232 Port 1 x DB 9 Female (Black)

Video Out 2 x DVI-D female (White)

Audio Out 2 x Mini Stereo jecks Female (Green)

Power 1 x DC JackLEDsLink1 (Green)

Power 1 x (Green + Orange)

Resolution Up to 2560 x 1600

Power Consumption DC 5.3V, 3.1 W

Signal Range 5m (15ft)

Environment

Operating Temp.0–50ºC

Storage Temp.-20–60ºC

Humidity 0–80% RH, Non-condensing

Physical PropertiesHousing Metal

Weight0.68 kg

Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm

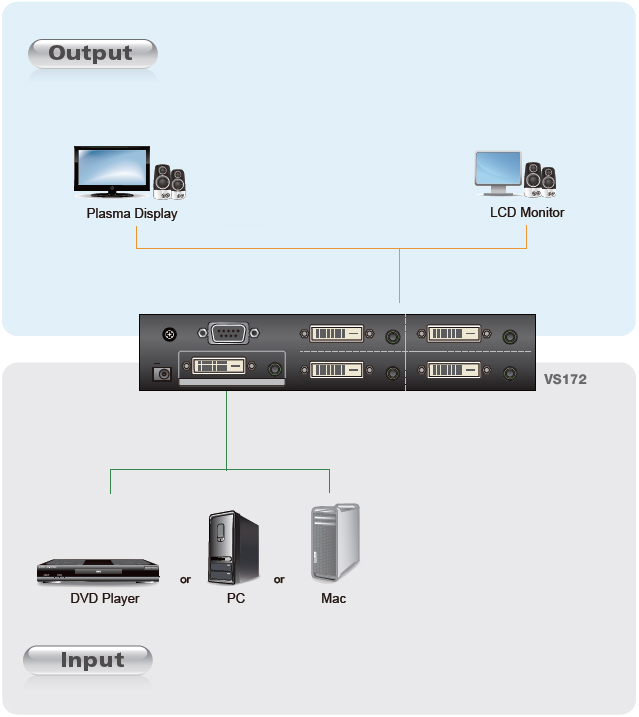

DIAGRAM

PACKAGE CONTENT

• 1x VS172 2-Port DVI Dual Link Splitter with Audio
• 1x Power Adapter
• 1x User Instructions
