DISTRIBUTE ONE SINGLE-LINK DVI SIGNAL TO MULTIPLE DISPLAYS

ยี่ห้อ G&D รุ่น DVISplitter

The Digital Signage products DVISplitter distribute, extend and amplify one single-link DVI video signal to multiple displays.

The devices are available as variants displaying 2 or 4 video channels and can be used as stand-alone devices.

PRODUCT DETAILS

Details

Video

• Three effects: distribute, extend, amplify
• Distributes digital video signals up to 2 to 4 displays
• Resolutions up to 1920 × 1200 @ 60 Hz
• Digital colour mode 24 bits
• Transparent transmission of DDC information
• Multi-channel variants
• Active signal amplifier

Operation

• Independent from any operating system

Transmission

• Transmission between graphical card and DVISplitter up to 50 m
• Transmission between DVISplitter and DVISplitter up to 50 m
• Bridges distances up to 150 m when fully cascaded (three levels)
• Transmission between monitor and DVISplitter 5 m (DVI standard)

Device

• Requires no software installation
• External power supply
• Available as desktop variant

Variants

Design

• Available as desktop variants

Video channels

• DVISplitter2: for 2 displays, can be expanded up to 8
• DVISplitter4: for 4 displays, can be expanded up to 64

Expansion

DVISplitter2

• Can be cascaded up to 2 levels
• Connects up to 9 displays and bridges distances up to 105 m

DVISplitter4

• Can be cascaded up to 3 levels
• Connects up to 13 displays and bridges distances up to 150 m

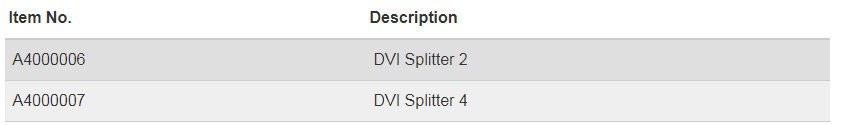

LIST OF ITEM NUMBERS
