รหัสสินค้า : MTH0404B

HDBASET 4×4 HDMI MATRIX OVER CAT5E/6/7

ยี่ห้อ NEXIS รุ่น MTH0404B

HDMI Matrix 4in 4out รองรับ HDBaseT ขยายสัญญาณได้ไกล 70 เมตร ผ่านสายแลนเส้นเดียว รองรับความละเอียดสูงสุด 4k2k@30Hz รองรับ POE

คุณสมบัติ

• HDMI2.0, HDCP2.2 compliant.
• Support color space conversions among RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats without deep color.
• Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.
• Support 3D frame sequential video format up to 1080p@60.
• Support high resolution VESA mode video format up to QSXGA@60Hz.
• Support reception of any audio data conforming to the HDMI specification such PCM up to 192kHz, compressed audio(IEC 61937),DSD,DST,DTS and HBR.
• Support Transmission distance:Over CAT5e/6/7

           70 meters:  1080P @60Hz@36bit; 3D1080P@30Hz36bit;

      40 meters:  1080P @60Hz@48bit; 1080P @120Hz@24bit;

      3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.

• Support POE function
• Support wideband IR(30-60Khz) matrix system, IR transport channel can be forward or backward and supports GLOBAL IR.
• Support RS-232 4 channel bypass.
• Support simultaneous HDMI and CAT outputs
• Support RS-232, remote control, on-panel control and TCP/IP Control
• Support smart EDID management

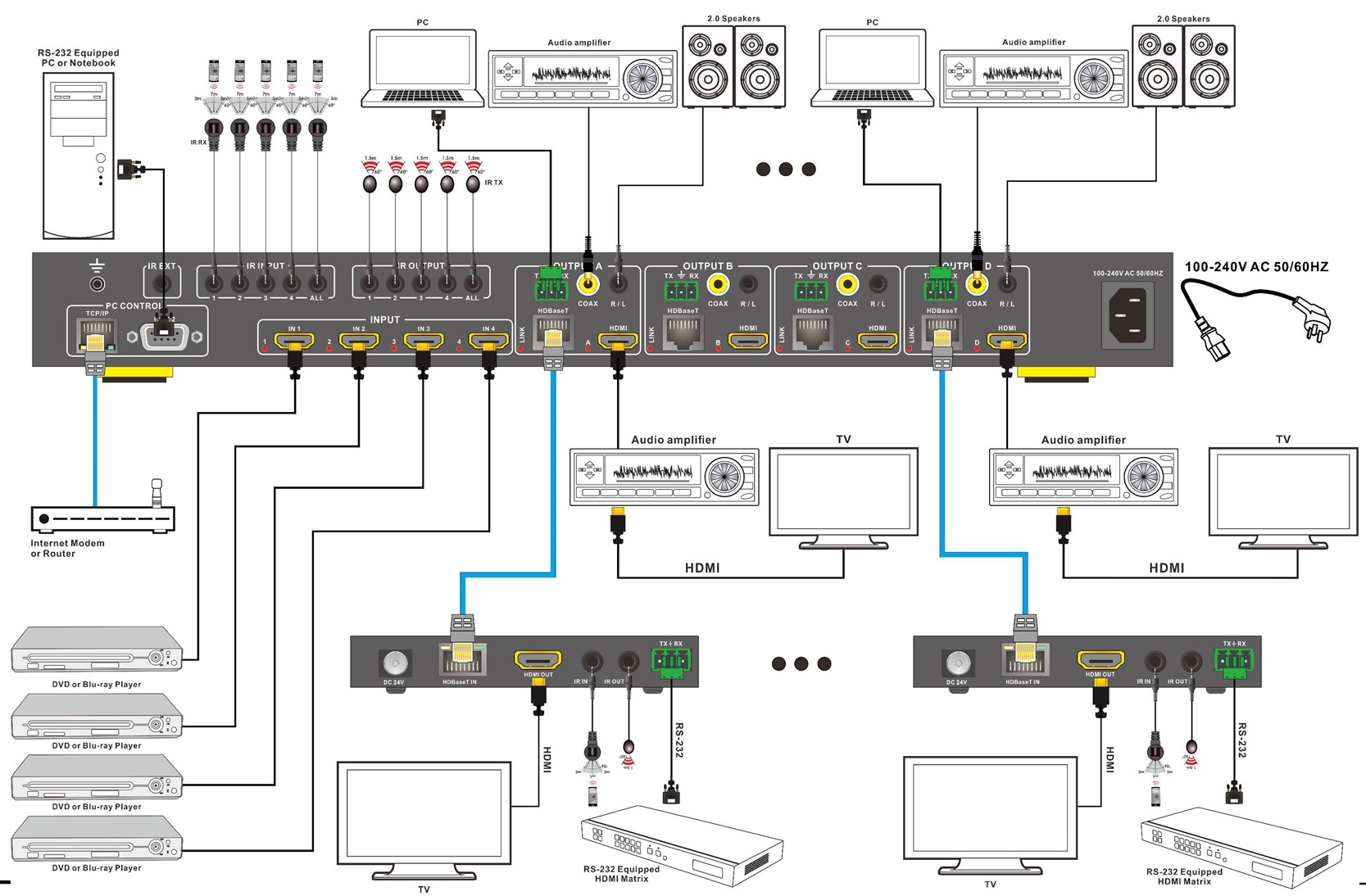

การเชื่อมต่อ

ข้อมูลจำเพาะ

Technical

Video Bandwidth

297MHz[10.2Gbps]

Support Video Resolution

480i,576i,480p,576p,720p,1080i,1080p24/30/50/60.4Kx2K@30;

Input Ports

4×HDMI, 5×IR Receiver, 1×RS-232, 1xRJ-45(Control), 4x RS232

Output Ports

4×CAT5e/6/7, 4×IR Blaster, 4×HDMI

HDMI connector

Type A 19 pin female

RJ-45 connector

WE/SS 8P8C

3.5mm connector

(TX and RX) IR Receiver/IR Blaster

ESD Protection

Human-body Model: ± 8kV (Air-gap discharge)± 4kV (Contact discharge)

Power Supply

AC Power Supply (US/EU standards, CE/FCC/UL certified)

Dimensions

440 mm (W)×200 mm (D)×45 mm (H)

Weight

1820 g

Chassis Material

Metal

Silkscreen Color

Black

Operating Temperature

0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature

−20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity

20~90 % RH (non-condensing)

Power Consumption

50 W(max)/0.5w(Standby)

อุปกรณ์ในชุด

• HD BaseT 4x4 HDMI Matrix-----1PC
• HD BaseT Receiver-----4PCS
• AC power cable-----1PC
• Operation Manual-----1PCS
• Wideband IR Tx cable-----5PCS
• Wideband IR Rx cable-----6PCS
• HDMI Matrix IR Remote-----1PC
• Mounting ears(Matrix)-----2PCS
• Mounting ears(Receiver)-----8PCS
• RS-232 cable-----1PC
